FSAE Electric 2022

Published July 2022

This was the first ever electric WPI formula SAE car. We were incredibly glad just to pass technical inspection/scrutineering, so placing fourth at FH+E and winning the IEEE Excellence in EV Engineering award was a huge deal for us.

a nice picture of the car in all its zebra print glory with the IEEE Excellence in EV Engineering award
a nice picture of the car in all its zebra print glory with the IEEE Excellence in EV Engineering award

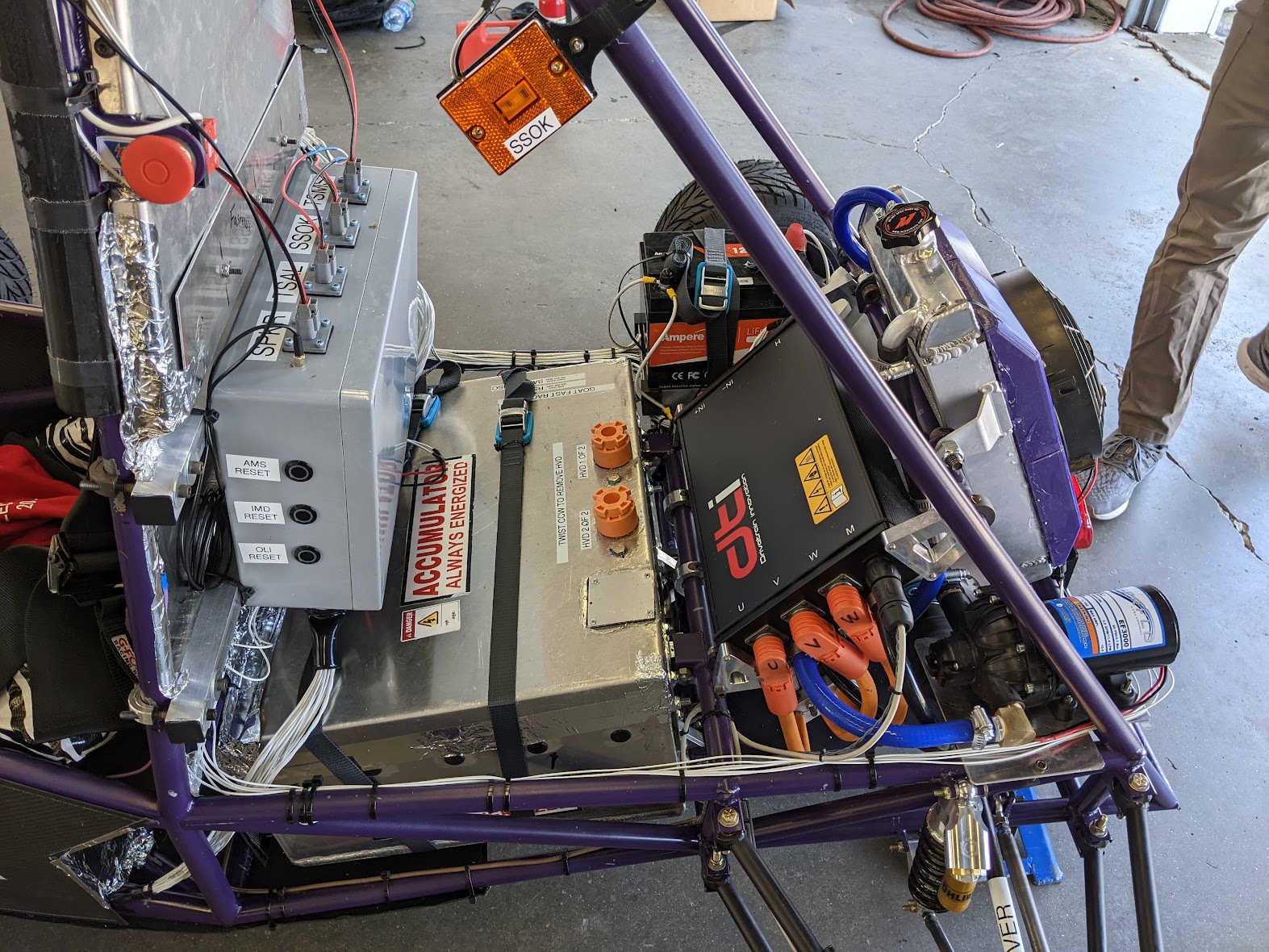

an absolute packaging nightmare in the rear end of the car
an absolute packaging nightmare in the rear end of the car
the accumulator assembled without its case during initial testing
the accumulator assembled without its case during initial testing

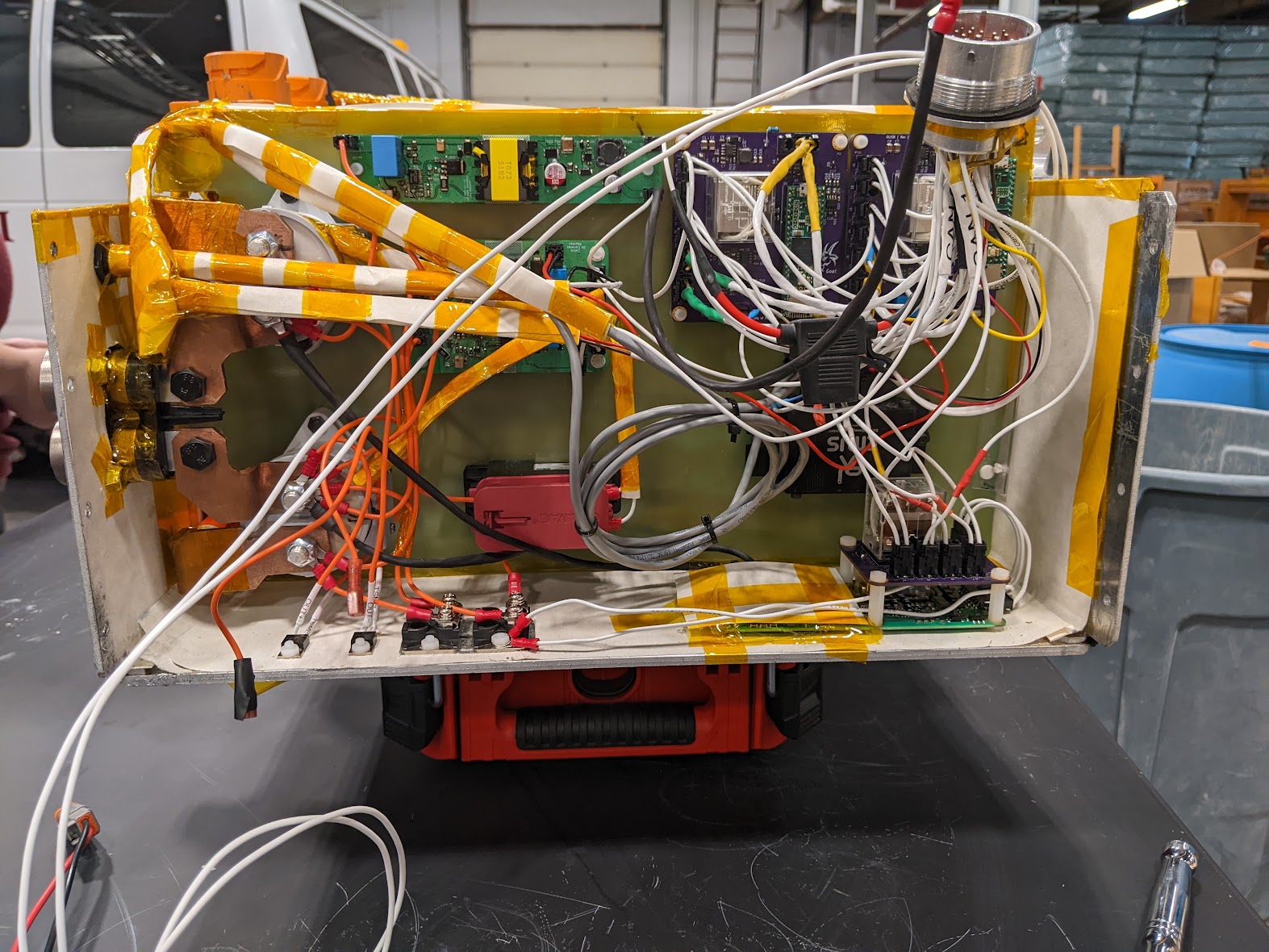

our HV control box
our HV control box

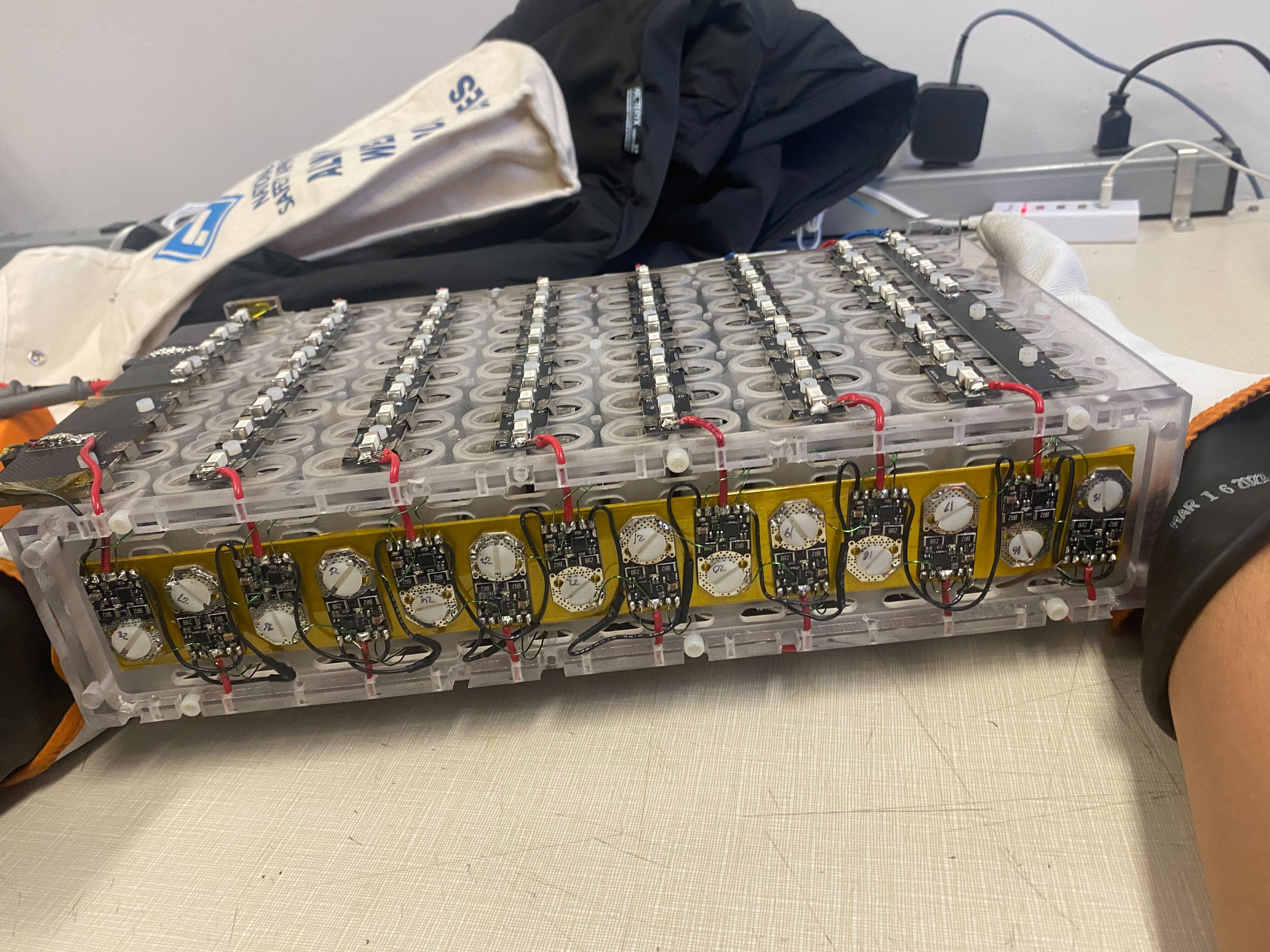

the bottom of one of the four segments that made up our accumulator
the bottom of one of the four segments that made up our accumulator

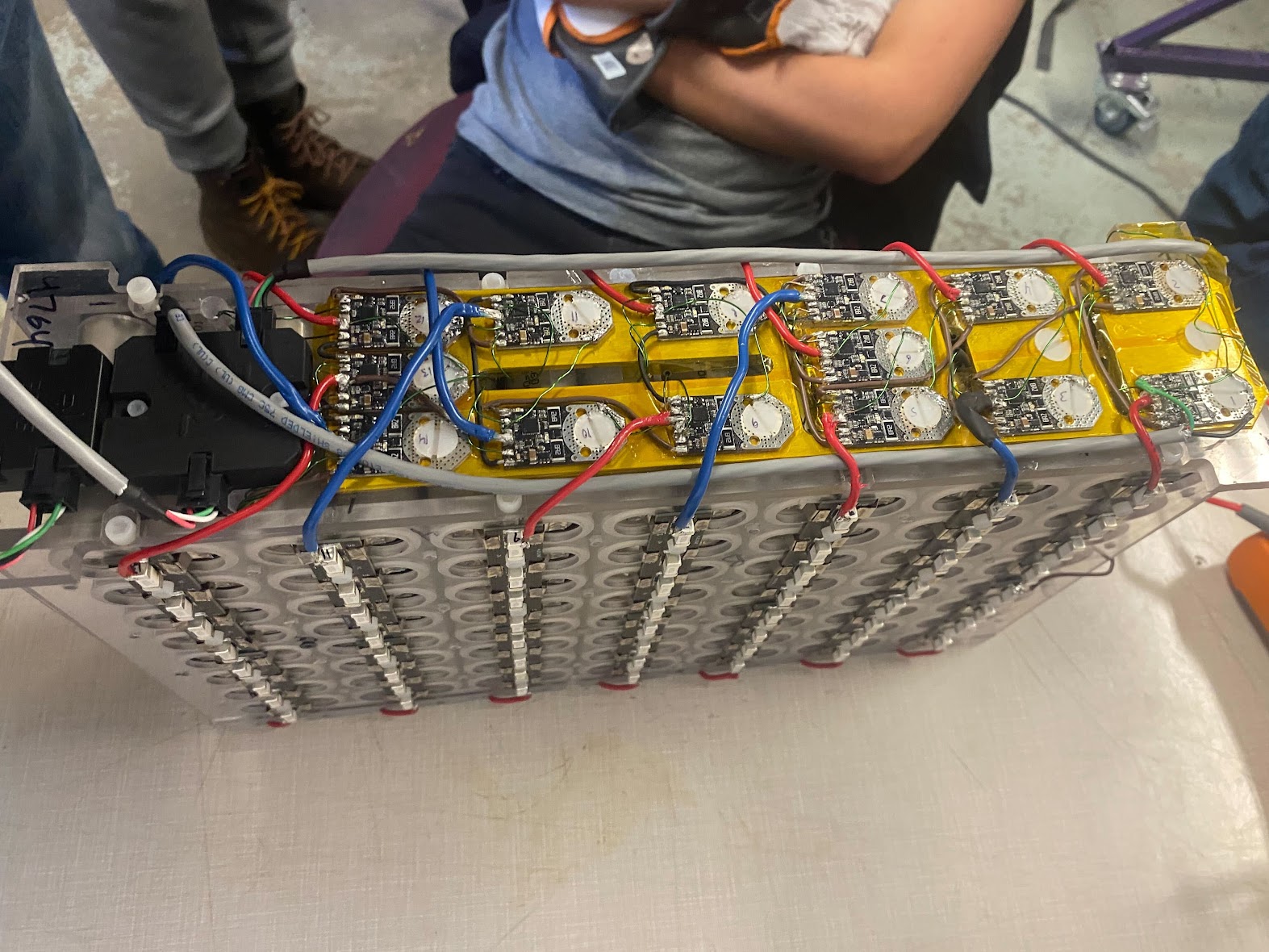

the top of the same segment
the top of the same segment

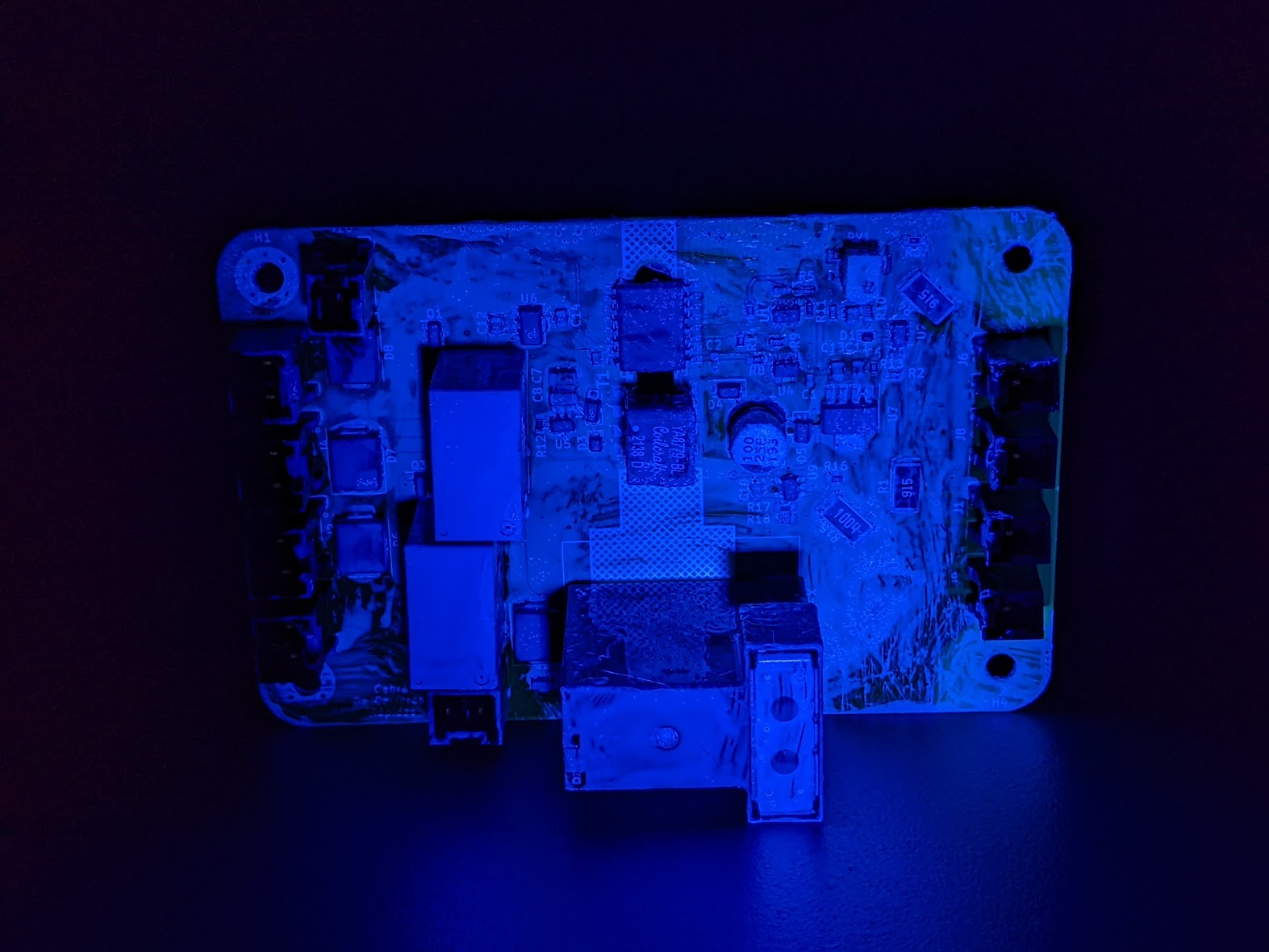

one of our pcbs (this image is under uv to demonstrate conformal coat)
one of our pcbs (this image is under uv to demonstrate conformal coat)
